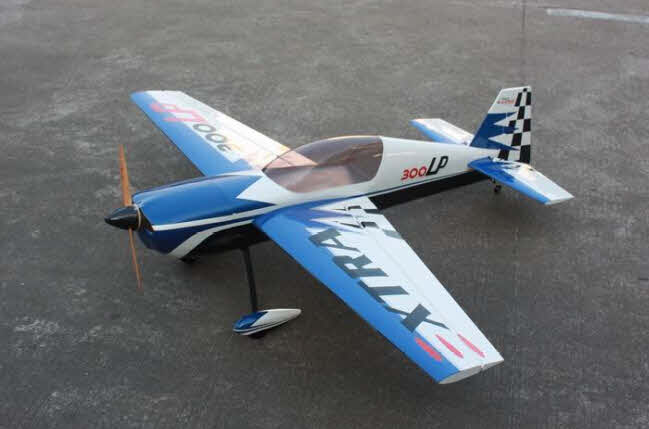

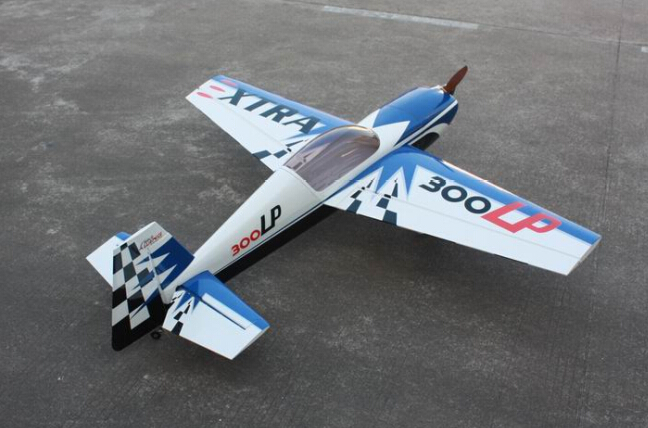

 Goldwing EXTRA300LP

 EXTRA300LP (Oracover film, carbon accessories)
 Wing span   (spanwijdte)  2310 mm   91"
 Length  2240 mm  88"
 Flying weight  7.7 - 8.4 kg          17 - 18.5 lbs
 Radio  4 - 6 channels, 5 - 7 servos
 Engine Gas       (Electro)  50 - 70cc (4000W)

 Detailed specification continued:

 Wing area  96.4 dm2                   1494 sq.in
 Engine (Electric)

 Gas engine: DLE55, DLE60, EME60, DLA58, ROTO50, ROTO70
 Electric motor: 4000W, ESC 160A
 12S LiPo 5000mAh

 Documentation  Instruction manual



See the instruction manual for more pictures and details of the model.


The model is covered with Oracover film.

Full set of Carbon Fiber accessories included:

  • Wing tube
  • Landing gear
  • Tail wheel
  • Control horns



Features:

  • See the instruction manual
  • Including new clear KUZA fuel tank
  • Up to 60 degree of throw of the control surfaces for excellent 3D aerobatic flying
  • Covered with genuine Oracover film
  • Extra covering added for small repairs
  • Removable rudder
  • Side Force generators
  • Light weight construction
  • Two pieces of removable wings
  • Easy installation
  • Light rubber wheels with alu hubs
  • High performance hardware including: Ball linkage control system; safe servo stapers;
  • Honeycomb Board carton packing for safer transportation



Other:

Professional designed for 3D and precision aerobatics.

High Pre-installation:

  • Pre hinged wings and stabs;
  • Pre mounted and painted (foil) Canopy;
  • Pre mounted fuel tank



See detailed description below:

Carbon Fibre Wingtube

Carbon Fibre Wing Tube

Carbon Fibre Landing Gear

Carbon Fibre Landing Gear

Carbon Fibre Tail Gear

Carbon Fibre Tail Gear

Wheels with alu hubs

Wheels with alu hubs

KUZA clear fuel tank

KUZA clear fuel tank

SFG: Side Forge Generator

SFG: Side Forge Generator

Carbon Fiber Control Horns

Carbon Fiber Control Horns

Carbon Fiber Control Horns

Carbon Fiber Control Horns

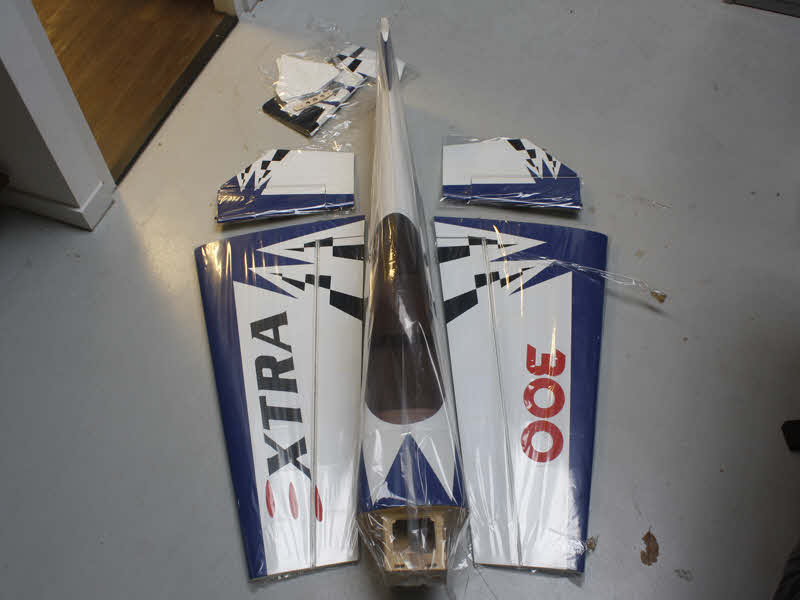

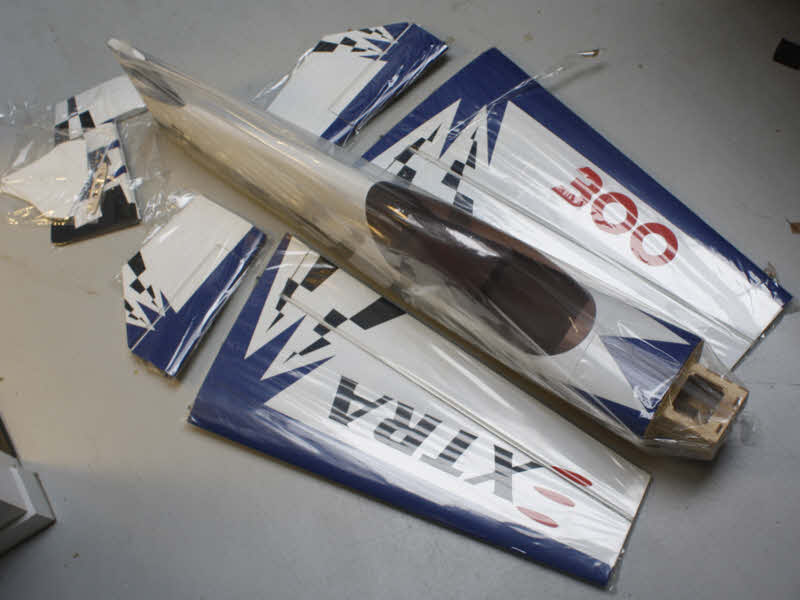

Honeycomb board carton packing

Honeycomb board carton packing for safe transportation
