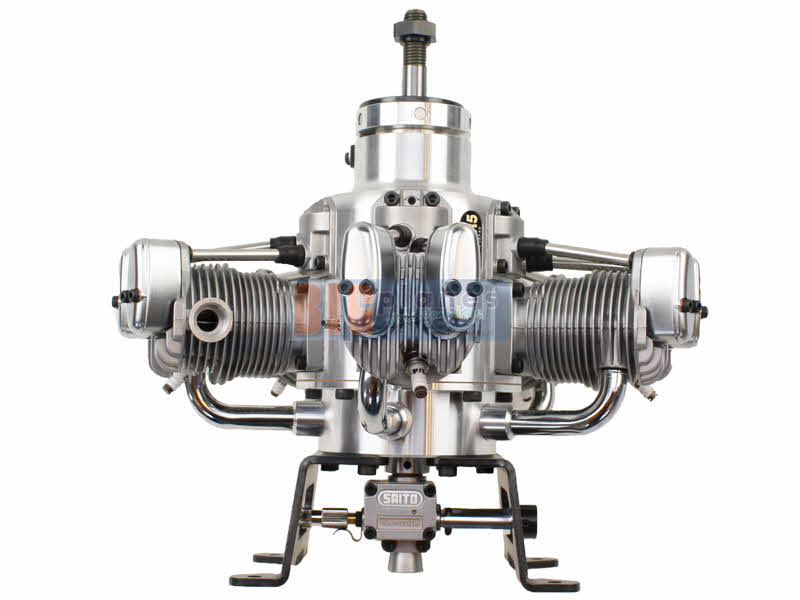

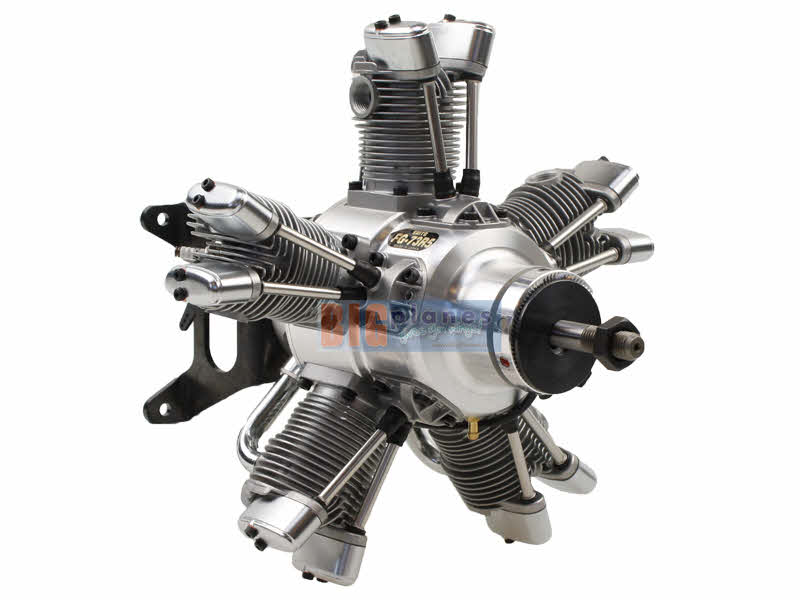

Saito FG-73R5 73cc 4-stroke Radial gas engine for rc model airplanes.

 Output Power

 hp / kW

 Propeller

 22x10, 23x10

 Weight

 2980g/ 3260g (excl./incl.mufflers)

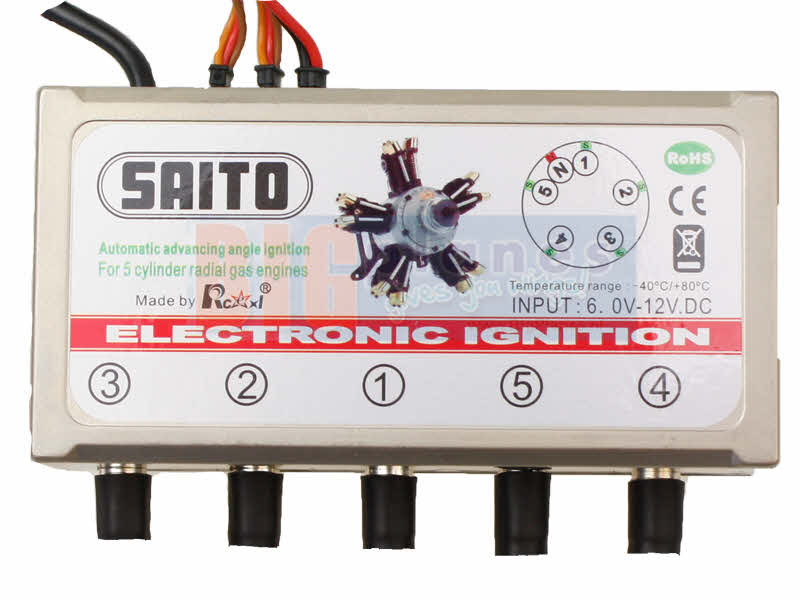

  Delivery includes: spark plugs, ignition and mufflers.

Technical  Specification:
 Displacement                 (Cylinder Inhoud)  73  ccm

 Output Power                         (Vermogen)

   hp
    kW
 Carburetor




 Static Thrust    kg
 Speed Range                           (Toerental)  1200 - 7800  rpm (omw/min)
 Propeller  22x10 .. 23x10  inch
 Ignition power supply (Spanning ontsteking)  6 - 12  Volt
 Spinner mount thread  n.a.  mm
 Crankshaft mount thread  M10 x 1.25       mm
 Gas/Oil mix ratio   (Brandstof verhouding)  20 : 1  gas : oil
 Weight:
 Engine                 (including mounting HW)  2600  gram
 Muffler  280  gram
 Ignition  380  gram
 Documentation:
 User Manual        (Gebruikers Handleiding)  FG-73R5-Saito-Manual
 Approx. Fuel Flow  cc/min (at full throttle,  rpm)
 Link naar Fabrikant
 Links:
 SAITO Spare Parts



The FG-73R5 4-stroke radial gas engine from Saito is especially developped for scale models.

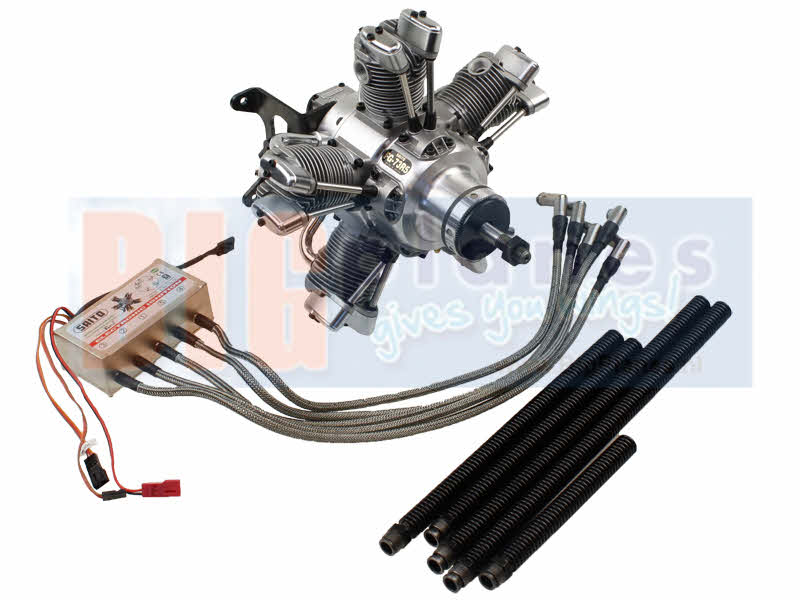

Detailed overview of the delivery of the Saito FG-73R5 radial gas engine:

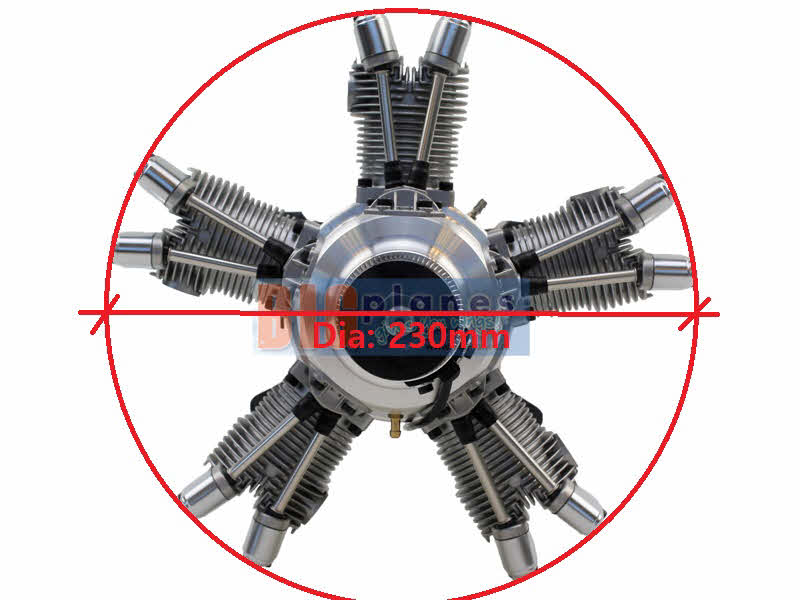

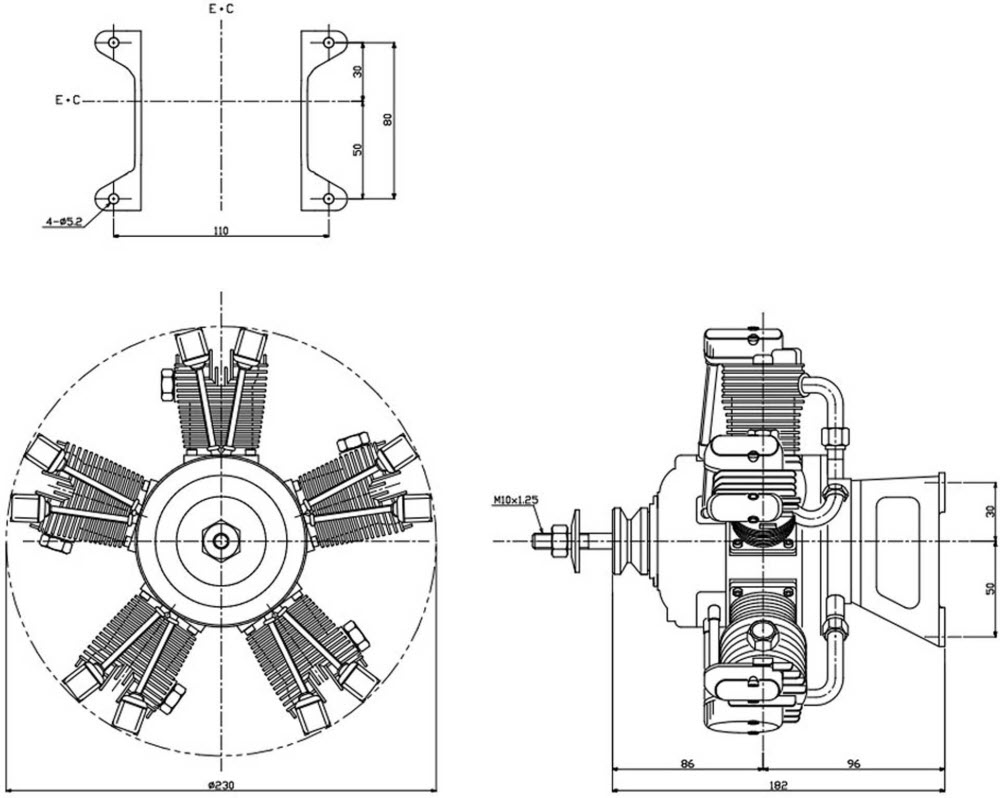

Dimensions of engine:
