Including unique BigPlanes Starter or Maintenance package and RCEXL Fuel Pump.

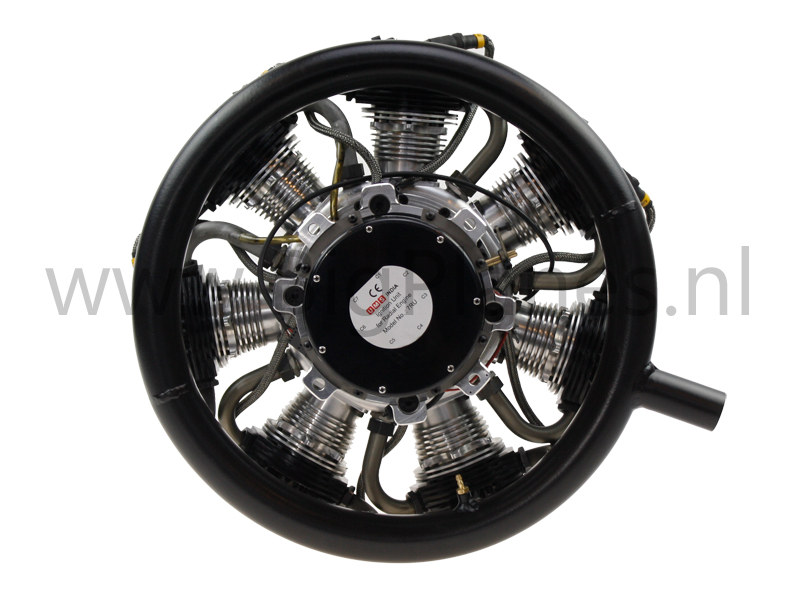

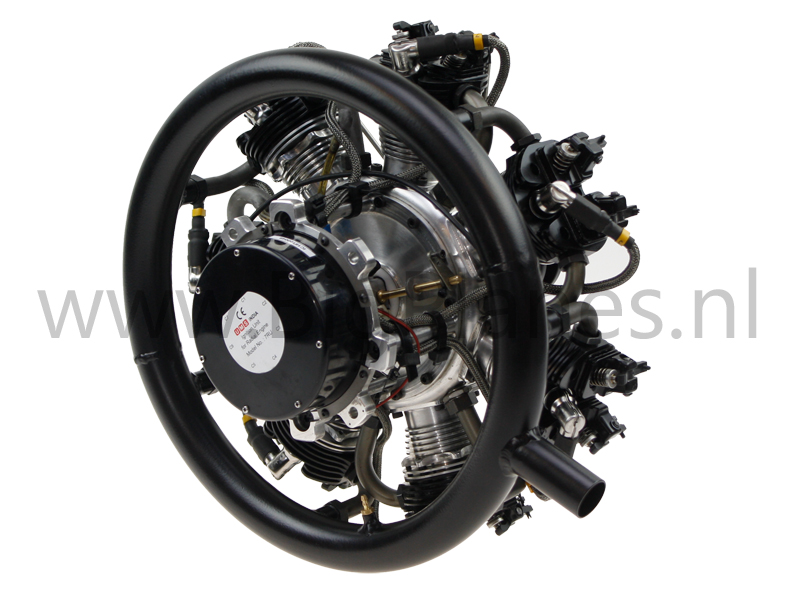

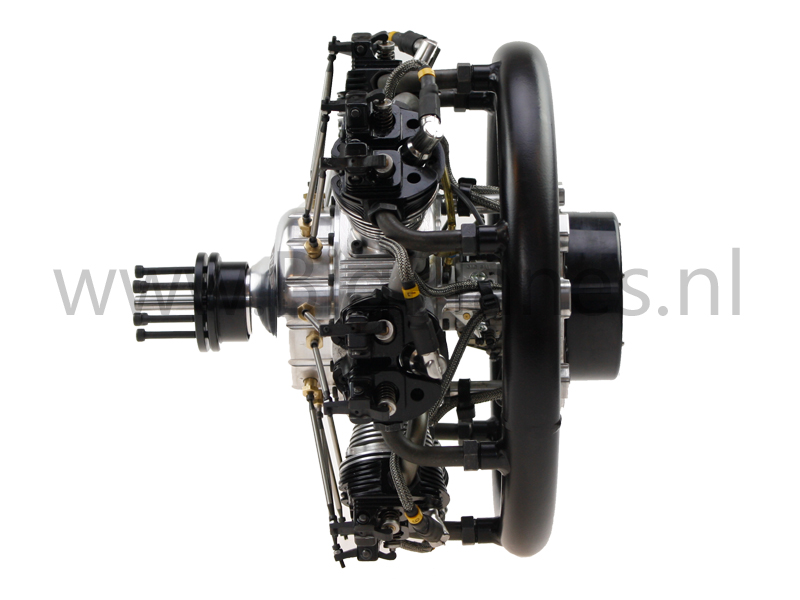

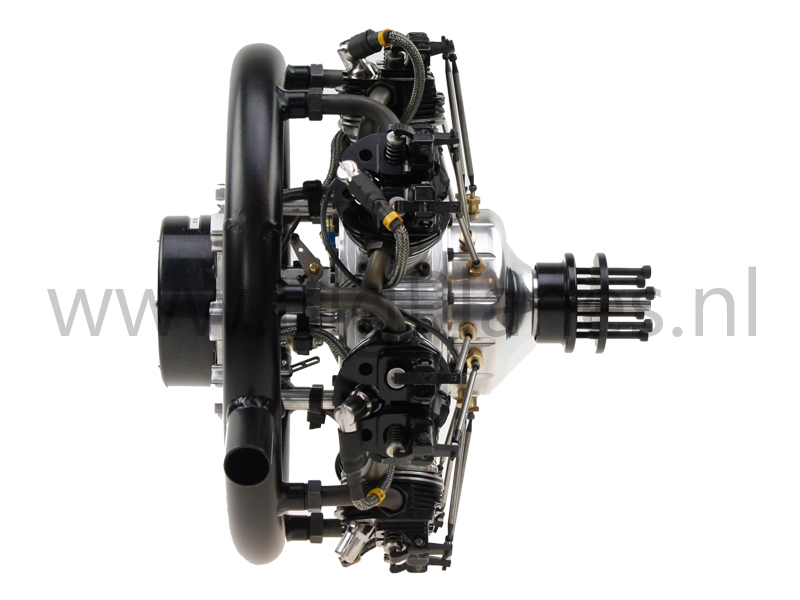

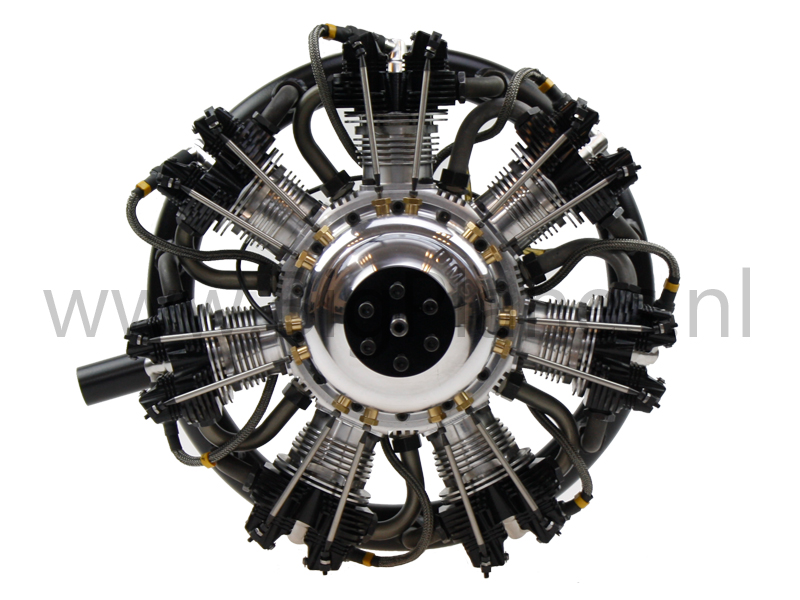

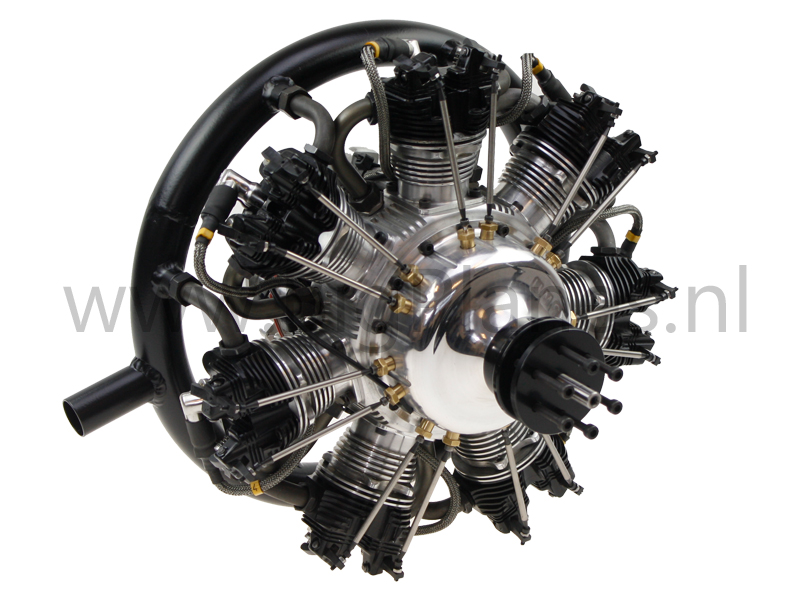

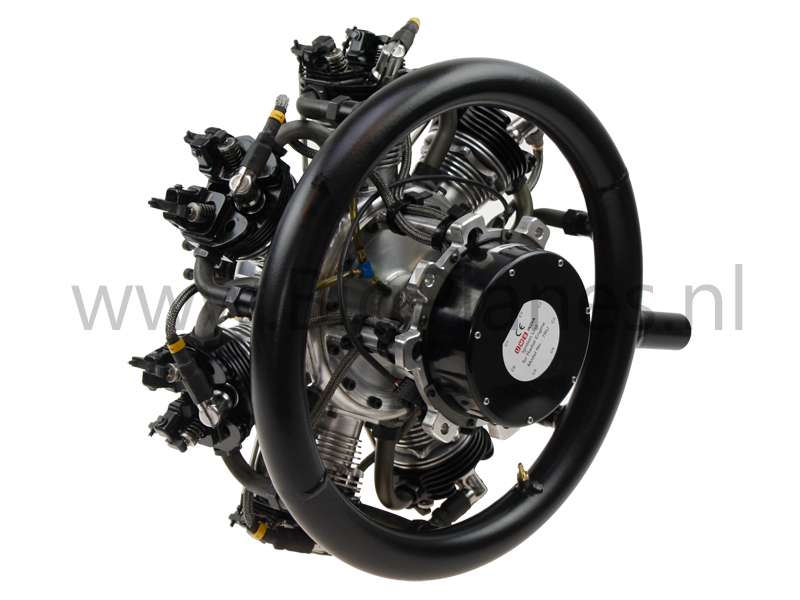

UMS 7-Cylinder 260cc 4-stroke Radial Gas Engine Including ring muffler.

 Output Power

 15.6hp

 Propeller

 32x12 .. 32x14

 Weight

 6700g (excl./incl.mufflers)

  Delivery includes: CM-6 spark plugs, ignition and ringmuffler, RCEXL Fuel Pump.

Technical  Specification:
 Displacement                   (Cylinder Inhoud)  260  ccm

 Output Power                           (Vermogen)

 15.6  hp
   kW
 Carburetor

 WT-621


 Static Thrust    kg
 Speed Range                             (Toerental)  900 - 5500  rpm (omw/min)
 Propeller  32x12 .. 32x14  inch
 Ignition power supply (Spanning ontsteking)    Volt
 Spinner mount thread    mm
 Crankshaft mount thread        mm
 Gas/Oil mix ratio     (Brandstof verhouding)  30 : 1  gas : oil
 Weight:
 Engine                  (including mounting HW)  6700  gram
 Muffler    gram
 Ignition    gram
 Documentation:
 User Manual         (Gebruikers Handleiding)
 Approx. Fuel Flow  cc/min (full throttle)
 Link to manufacturer
 Links:
 Spare Parts



Spark plugs are of type: CM-6

7-Cylinder 260cc 4-Stroke Gas / Petrol Radial Engine

The UMS 7-260 is a very reliable radial engines which uses gas fuel. UMS has a lot of experience building radial engines. It has brought more than 2000 engines to market so far. The design and construction are upper class leading to a outstanding realibility of these engines. They are easily servicebale. All critical parts are easily accessible.

Key Features

  • 7-cylinder radial configuration—absolutely stunning looks and realism
  • 4-stroke
  • Midsize 260cc displacement
  • Comes complete with exhaust collector ring —one-box purchase for a ready-to-mount-and-run engine
  • User-friendly choke and throttle bellcranks included—makes installation and operation easy
  • Made from aluminum or bar stock where appropriate and CNC-machined—accurate and repeatable specifications each and every time
  • Cylinder head and crankcases produced from aircraft grade alloys
  • Heavy-duty double bearing crankshaft
  • Billet aluminum pistons and hardened steel rings
  • Hard-chromed and lapped cylinder bores
  • Hardened steel cams
  • Burns gas/petrol fuel



The UMS-7-260cc 4-stroke radial gas engine from UMS is especially developped for scale models.

Dimensions:

Diameter of the engine is 32 cm.
