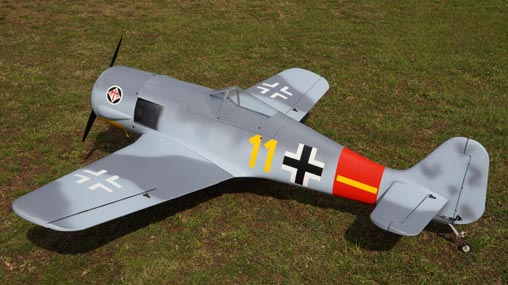

CYMODEL FW190, 50cc, optional retract system

CYMODEL FW190 50cc
 Wing span    (spanwijdte)  2120 mm   83.5"
 Length  1790 mm                       70.5"
 Flying weight  9 - 12kg
 Radio  6 channels, 9 servos
 Engine Gas       (benzine)  40 - 60cc

 Detailed specification continued:

 Wing area  63.8 dm2  989
 Wing loading  gr/dm2                           oz/sq.ft
 Options  Retract system
 Documentation  FW190 Instruction Manual
 Manufacturers website      CYMODEL Website

CYMODEL creates detailed and nice user or instruction manuals for their rc model airplanes. Also a detailed building or instruction manual for the FW190 from CYMODEL is available.

See FW190 Instruction Manual




Both electric as well as air retracts are available. The retracts include alloy wheels and oleo struts. All in a very high quality.


Product Description:

1. High-quality, prepainted, fiberglass fuselage and cowling;
2. High-quality balsa and plywood material;
3. Light weight and strong construction;
4. Functional scale flaps;
5. Aluminum wing tube;
6. Aluminum stabilizer tube;
7. Hardware package included;
8. Scale color scheme with professional covering;
9. Decals pre-applied at factory.

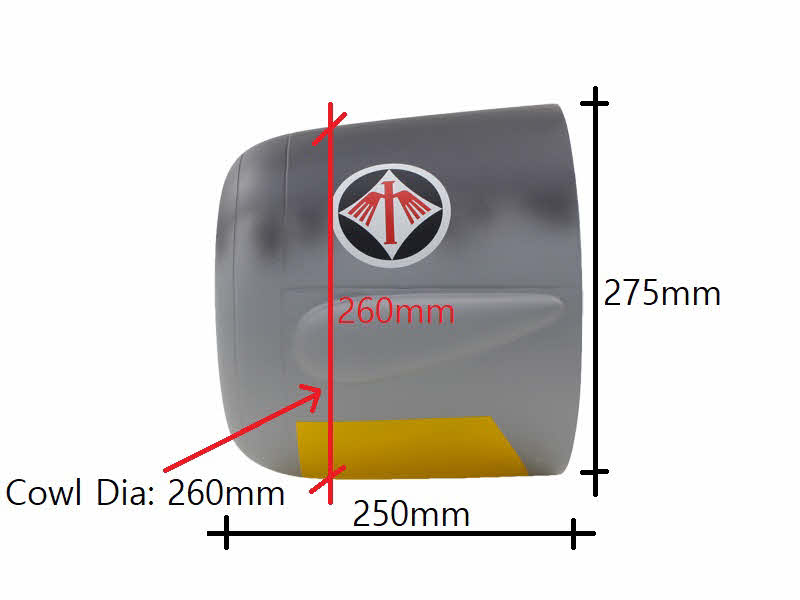

Cowl dimensions:
