DELight Strip LEDs are powerful, easy to use LED lights which are designed to be used with our DELight Controller. However, they are fully self-contained, and can be used by themselves if desired. They have a standard servo-type plug, so you can use off-the-shelf servo extensions and Y-harnesses.
Each light modules consist of fourteen surface mount LEDs, an appropriate current-limit resistor and a 24" lightweight wire pigtail terminating in a universal servo-type connector. Available colors are red, green and amber.

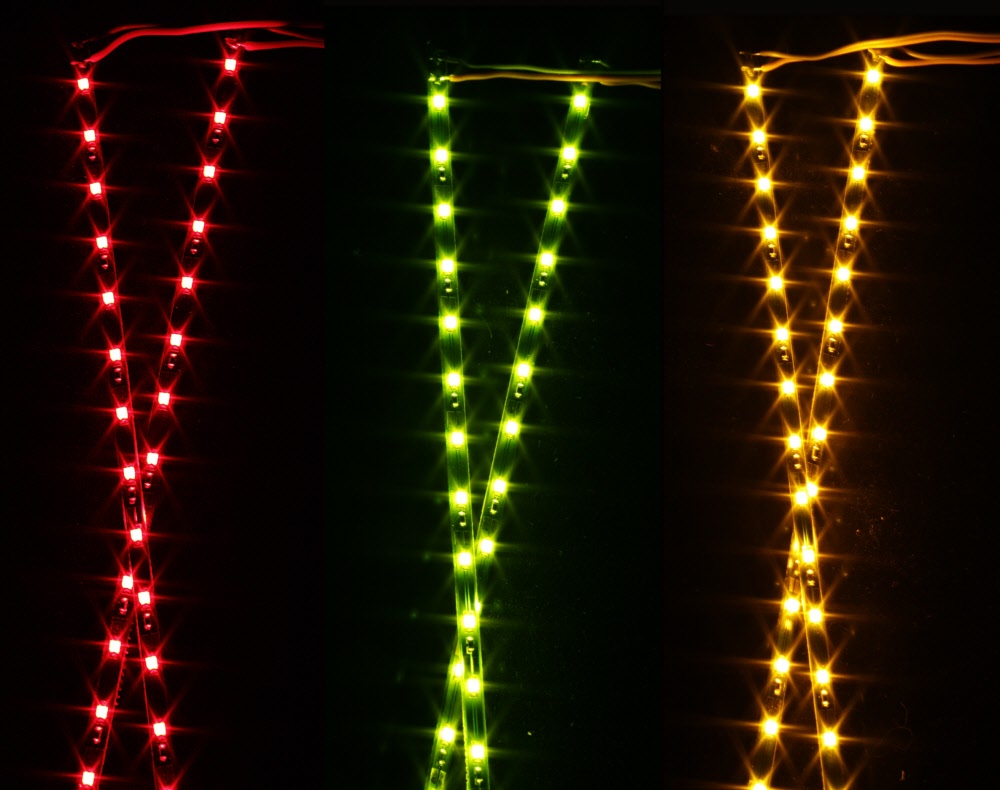

The light output of each strip varies by its color. Green LEDs put out 170 millilumens of light per LED for a total of 2.38 lumens. Red LEDs output 330 mLM per LED for a total of 4.62 LM. Amber LEDs output 520 mLM per LED for a total of 7.28 LM! They have a wide 120 degree beam angle, so they can be seen from many positions and light up large surfaces.
||Operating voltage: 4V-6V|
Current: 150mA max
Size: 6" x .125" x .05" + 24" Wire Pigtail
Weight: 3.4 g
||Additional LEDs for the DELight Programmable Lighting System|
