Ignition Mini Tachometer

RCEXL
RCEXL2201
Add to cart
  • Description
  • More

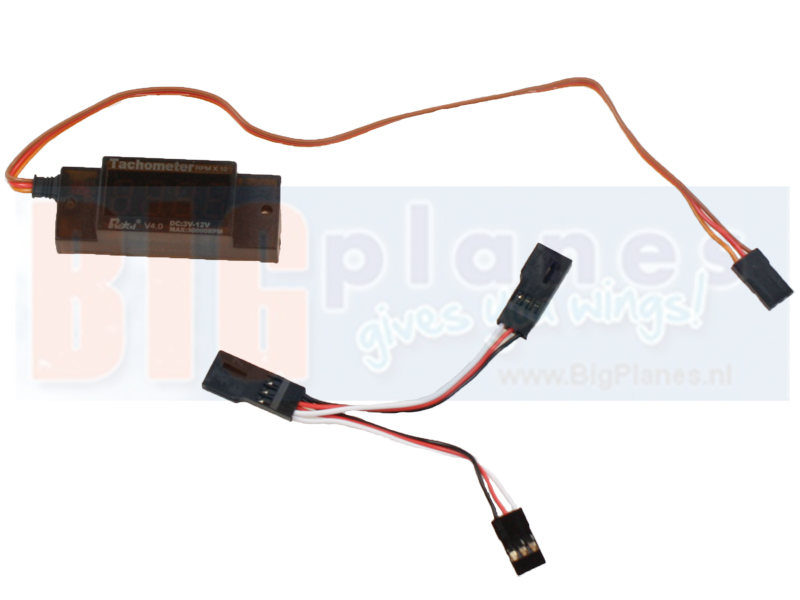

Mini tachometer from Rcexl for use with electronic ignition systems like the CDI. Also suitable for SAITO engines.

Indicates up to 30000 rpm.

Mini Tachometer

1. Contains PIC16f628a microcontroller2. Does not need seperate battery, powered from the ignition3. Standard FUTABA plug(Black-Negative Red-Positive and White-Signal)4. Using high-brightness LED display5. Input voltage range:3.5V-8.4V6. Current consumption 25mA-60mA7. Mini tachometer indicates up to 30000 rpm 8. Actual RPM= Display Digital *109. Body Size: 41mm L x 17mm W x 12mm H 10.Window Size: 30mm L x 15mm H
11.Weight:8.5g   (0.3OZ)

Documentation:  User manual

Instructions:
1.Connect the Y wire between the HALL sensor and the ignition.
2.Connect the tachometer plug to the other end of the Y wire.
3.Connect the power supply to the ignition and the tachometer will display the rpm / 10.


 Wiring diagram:
