The FSD FC2826 is an engine suitable for models with a flying weight between 300 - 700 g.

 Model reference  FC2826-12
 KV (RPM/V)  1380
 No Load Current (A)  0,7
 No. of LiPo cells  2 - 3
 No. of NiMh/NiCd cells  6 - 9
 Max. Current 30s (A)  14
 Running Current (A)  <11
 Max. Input Power (W)  140  (3 LiPo x 3,3V x 14A)
 Weight (g)  45
 Prop adapter diameter (mm)  5
 Shaft diameter (mm)  3,175
 Max. Pull (kg)  0,75
 Propellor (inch)  < 10 x 5
 Internal resistance (milli-ohm)    118
 Number of poles  14
 Maximum efficiency  93
 Dimensions  see below
 Proposed ESC

 Pentium-40A

 Dynam 30A

 Dynam 18A

 Manufacturer Website  FSD

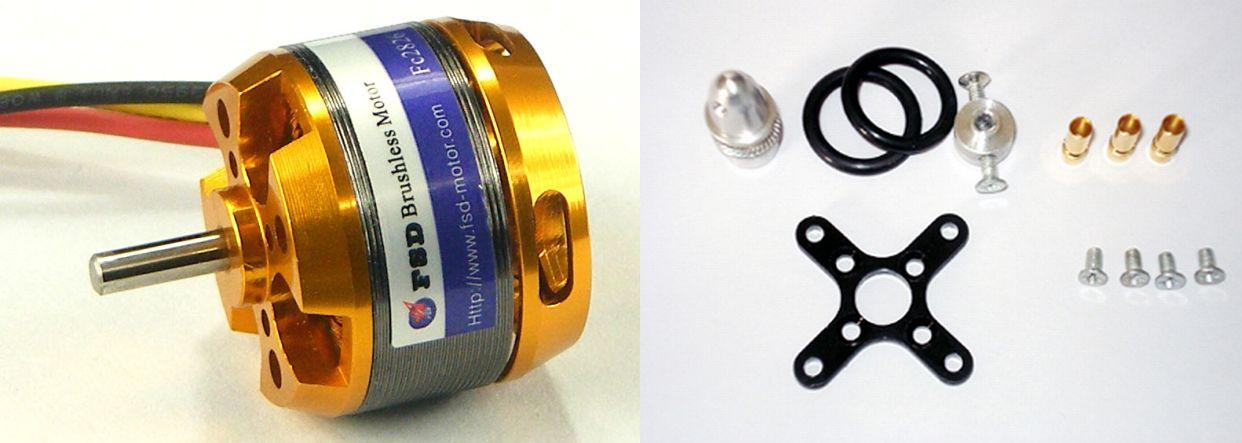

Product delivery overview:



Motor dimensions of the FC2826:
