The FSD FC3542 is an engine suitable for models with a flying weight between 1.5 - 4 kg.

 Model reference  FC3542-07
 KV (RPM/V)  730
 No Load Current (A)  1,8
 No. of LiPo cells  3 - 5
 No. of NiMh/NiCd cells  8 - 14
 Max. Current 30s (A)  38
 Running Current (A)  <34
 Max. Input Power (W)  630  (5 LiPo x 3,3V x 38A)
 Weight (g)  135
 Prop adapter diameter (mm)  6
 Shaft diameter (mm)  5
 Max. Pull (kg)  2
 Propellor (inch)  < 12 x 8
 Internal resistance (milli-ohm)    52
 Number of poles  14
 Maximum efficiency  93
 Dimensions  see below
 Proposed ESC

 Pentium-40A

 Dynam 40A

 Manufacturer Website  FSD

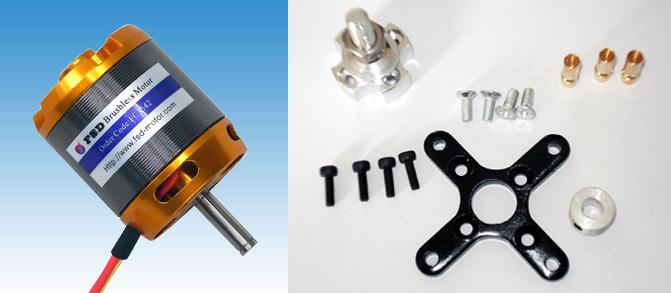

Product delivery overview:



Motor dimensions of the FC3542:
