RCGF26 Spare Parts

There are two versions of the RCGF26 engine. The "old" model and the new model. Bigplanes has the new model.

The left engine in the picture below gives the new model. The right engine is the old version.

The differences with respect to the old model are:

  1. Crankcase front and rear
  2. Read valve and insulator
  3. Black carburetor adapter
  4. Some gaskets
  5. Cylinder has new size (CM6) spark plug



The picture below gives the exploded view of the old RCGF26 model. It gives an overview of the different spare parts which can be ordered.The spare parts are however for the new model. At this moment there is no exploded view of the new model.



CM6 Irridium Spark Plug

RCEXL
RCEXL-ICM6
Add to cart

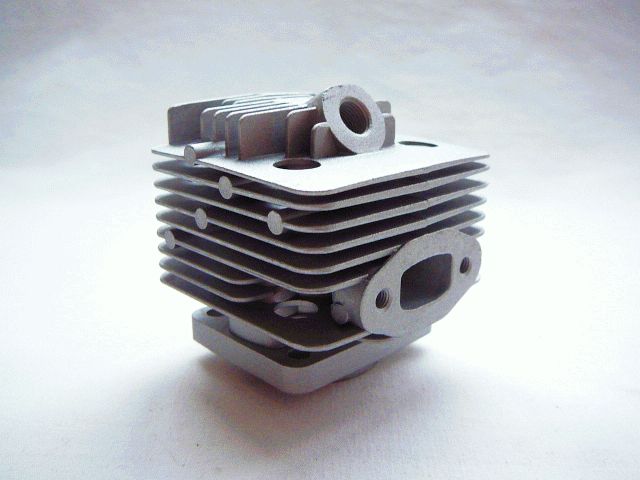

01 Replacement Cylinder (X2601)

RCGF26-01
Add to cart

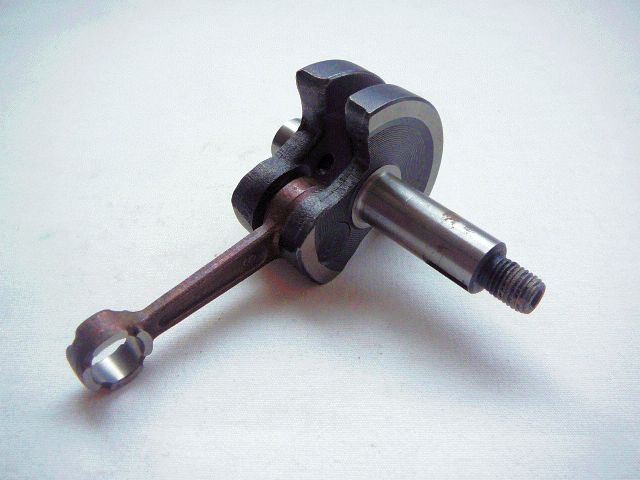

02 Replacement Crankshaft assessory (X2602)

RCGF26-02
Add to cart

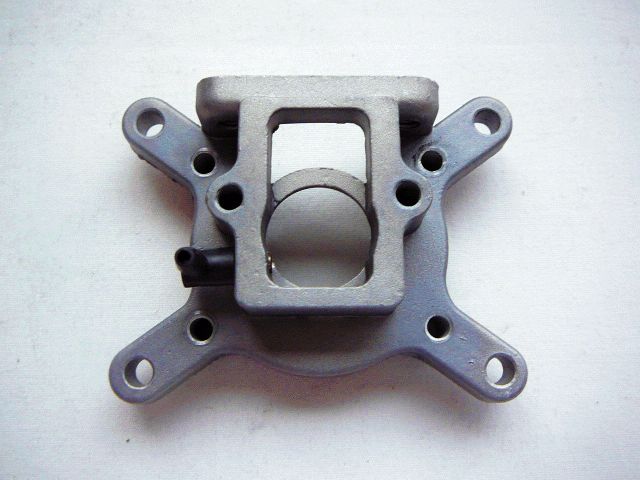

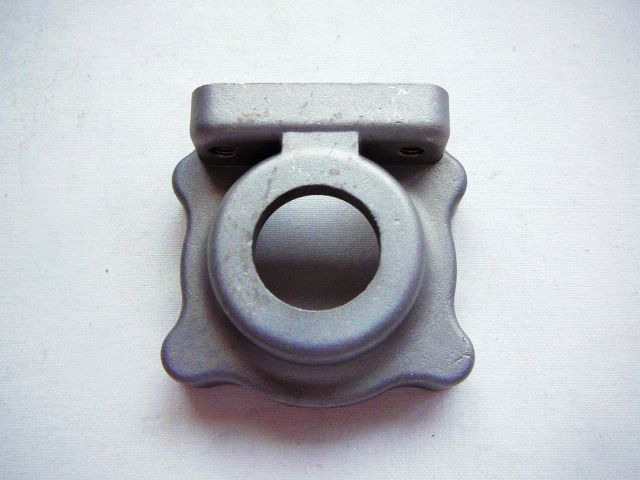

03 Replacement Crankcase set front (X2603)

RCGF26-03
Add to cart

04 Replacement Crankcase set rear and front (X2603)

RCGF26-04
Add to cart

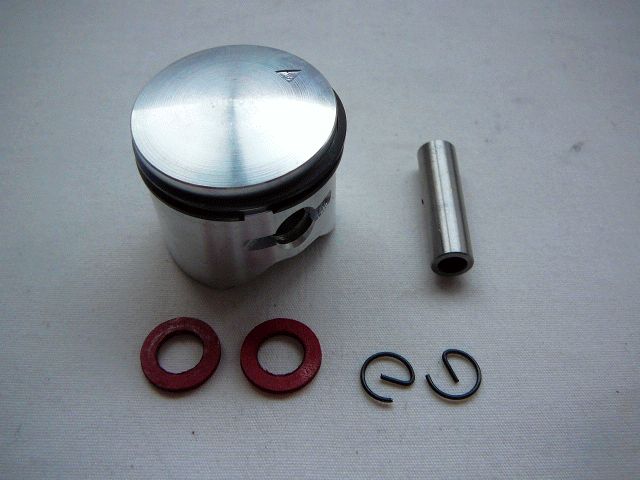

05 Replacement Piston assessory (X2604+X2628+X2627+X2605)

RCGF26-05
Add to cart

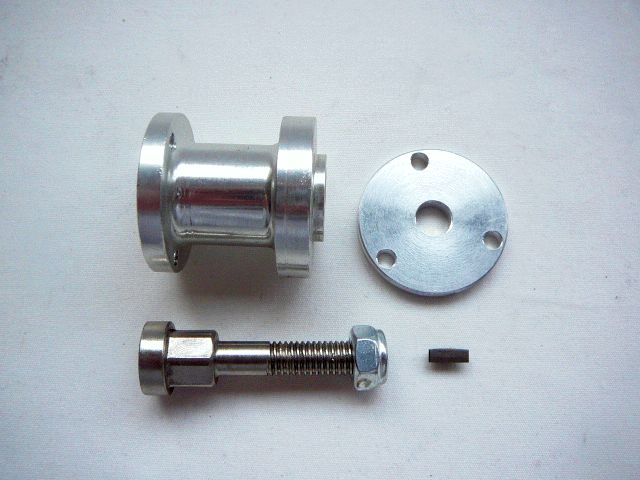

06 Replacement Prop hub accessory (X2616+X2623+X2624 )

RCGF26-06
Add to cart

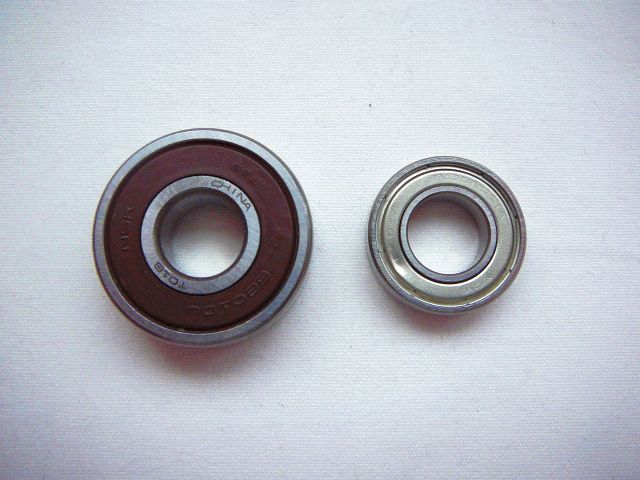

07 Replacement Bearings (X2612,X2625 )

RCGF26-07
Add to cart

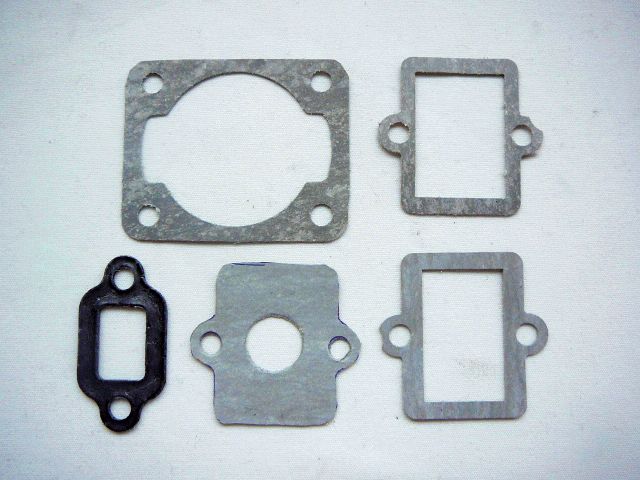

09 Replacement Gasket set (X2617+X2618+X2620+X2619 )

RCGF26-09
Add to cart

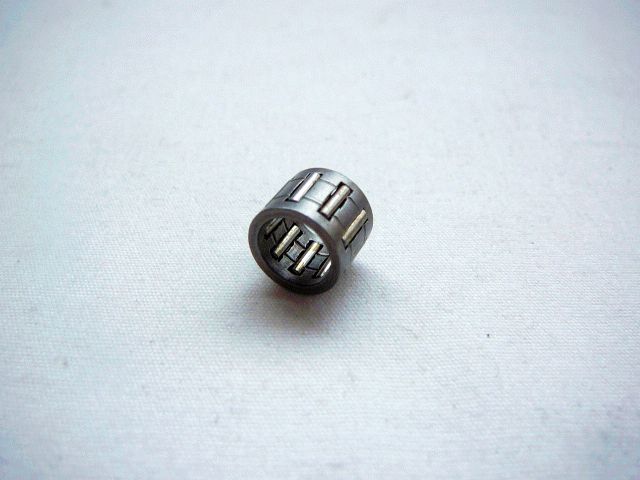

10 Replacement Wrist pin bearing (X2626)

RCGF26-10
Add to cart

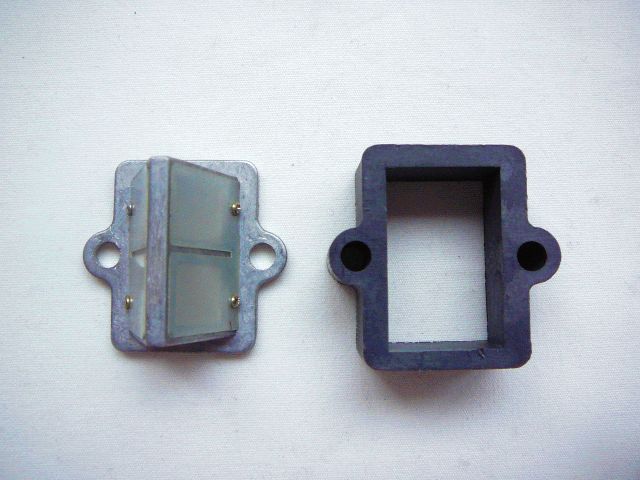

11 Replacement Reed valve & Insulator (X2611,X2621 )

RCGF26-11
Add to cart

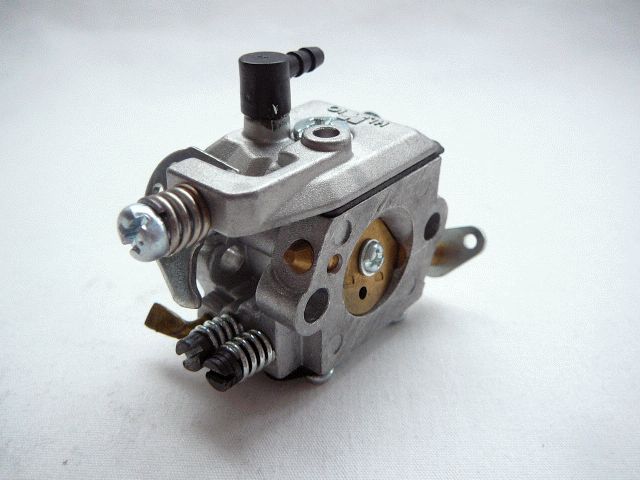

12 Replacement Carburetor (X2608)

RCGF26-12
Add to cart

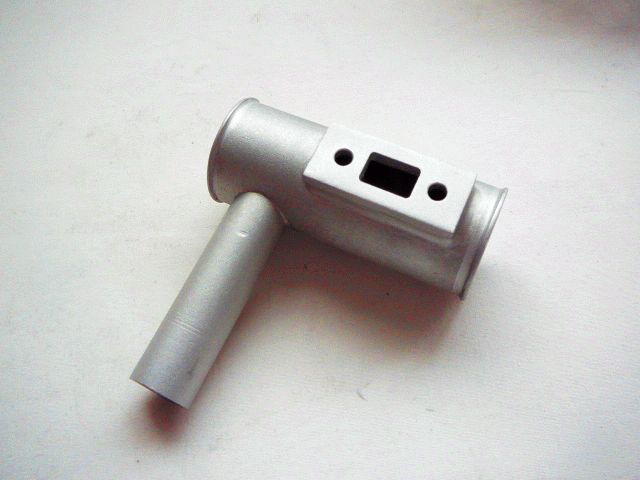

14 Replacement Muffler (X2607)

RCGF26-14
Add to cart

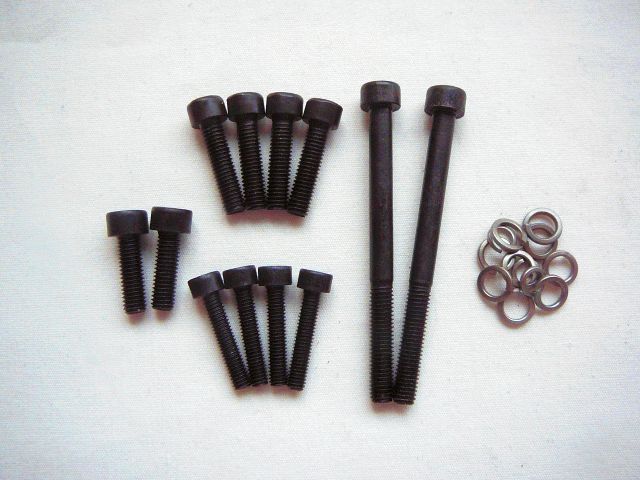

15 Replacement Screw set (X2600)

RCGF26-15
Add to cart
